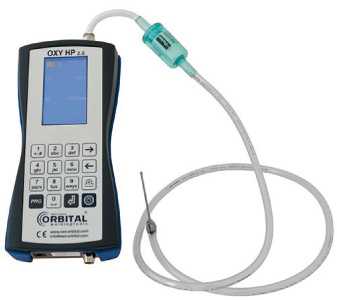

Oxygen Analyser

  • Simple menu navigation
  • LED display, parameter entry by membrane keyboard
  • Temperature-controlled zirconium sensor
  • Measuring cell made of zirconium oxide (maintenance-
    free), long service life due to intelligent cell
    management
  • Measuring range 5 - 999 ppm O2
  • Suitable for inert gases and gases with hydrogen
    content of max. 10 %
  • Battery-powered oxygen analyser with an operating
    time of up to 8 hours
  • Wall wart 110 VAC - 240 VAC, supply voltage 12 V
  • USB interface for storage of parameter sets
  • Documentation of residual oxygen value, date, time
    and name of project
  • Different interfaces, USB, 0 - 5 VDC, digital
  • Freely adjustable operating range
  • Language selection German and English
  • Memory of the validation process
  • Visual signal during the measurement when the
    measuring value is not achieved yet
  • Robust plastic case with protective rubber frame,
    external dimensions (L x W x H) 185 x 93 x 36 mm,
    weight 600 g
  • Tube set 1 m, including filter and stainless steel probe
  • Validation certificate
  • Including transport case
