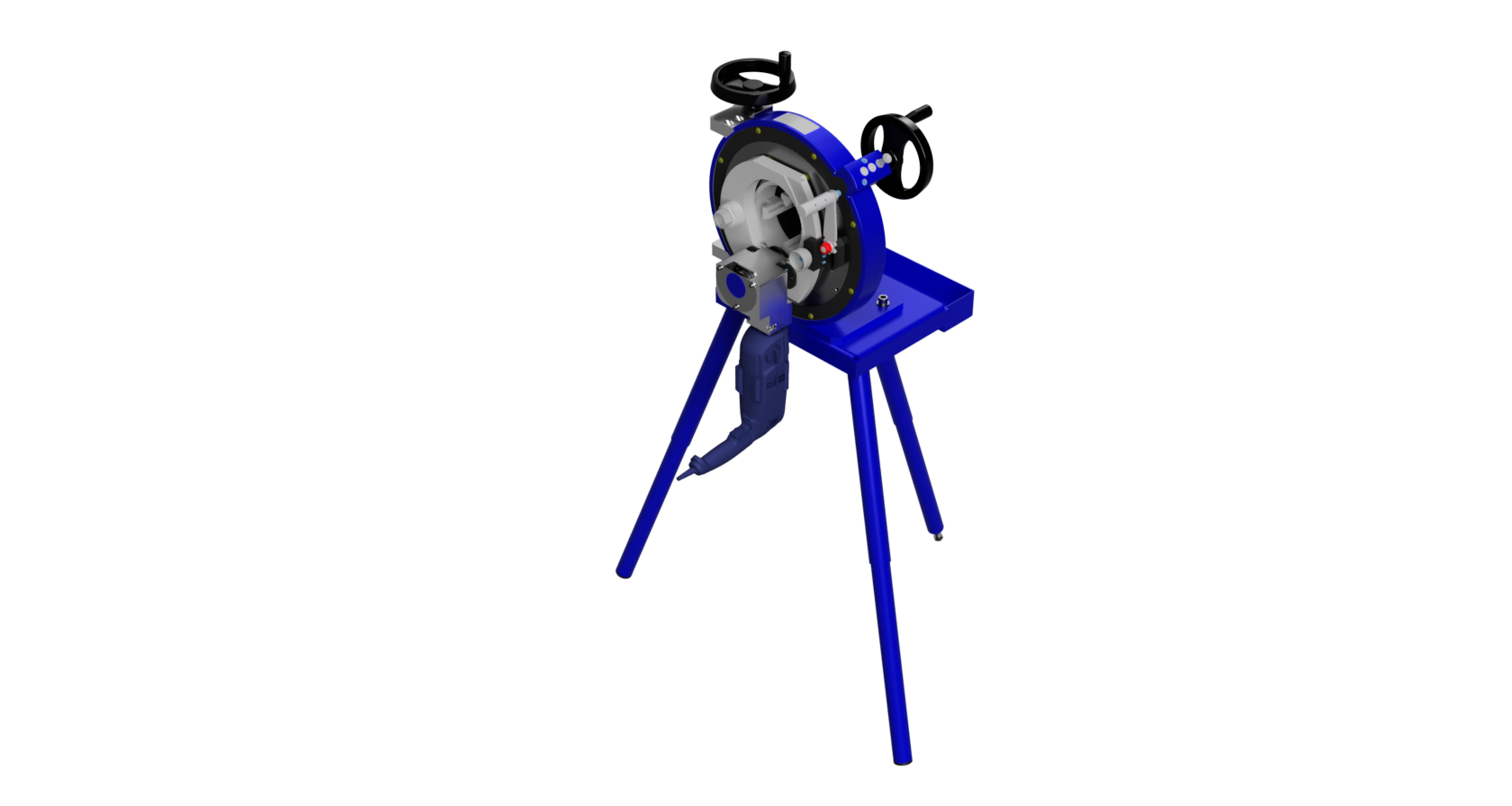

Cutting saw OrbiCut130

- Standard clamping jaws ø 29 to 130 mm
- Additional jaws ø 4 to 104 mm
- Right angle cutting accuracy
- Double shaft drive motor with 2 saw blade positions for elbow
- Weight: 49 kg
- Saw blade / clamping jaw distance 2 / 13.5 mm
- 2 position clamping jaws to reduce chatter and enable smaller length of pipe tob e machined
- Reduced vibration, prevents deformation of the pipes
- Concentric clamping with 4 stainless steel jaws as standard, no deformation of the tubes
- Electric motor drive unit for continously adjustable speed range 20 – 420 rpm
- Slide housing torque 120 – 330 Nm
- Rotary crank as standard - extends the service life of the saw blades and optimizes the cutting quality
